Architectural Signboards & Commercial Fabrication
Commercial signage engineered for retail outlets, corporate headquarters, and commercial plazas across Karachi, Hyderabad, and Sindh. We combine precision CNC fiber laser cutting with marine-grade materials engineered to survive coastal humidity and intense thermal cycles.
Precision CNC Laser Cutting & Marine-Grade Architectural Assembly
Expansion Division Operational Transparency
Outdoor advertising along the M-9 motorway is GMP's established core inventory. Our Signboards & Fabrication division is an active proposed capability offered on a consultation and project-by-project basis with turnkey design, engineering, and mounting coordination.
Architectural Signage Solutions
Engineered for maximum optical impact, brand elegance, and multi-year resistance to coastal humidity and thermal expansion.
3D Acrylic Letters
Cast virgin PMMA acrylic laser cut to sub-millimeter tolerances with front-lit, halo back-lit, or dual-lit LED illumination.
LED Signboards
Energy-efficient commercial signboards with Samsung/Osram chips, optical diffuser lenses, and Mean Well surge-protected power units.
ACP Cladding & Fascias
Architectural Aluminum Composite Panels (ACP) for commercial storefront modernizations, corporate plazas, and retail facades.
Stainless-Steel Signage
Marine-grade SS 316 and commercial SS 304 fabricated 3D lettering finished in Titanium Gold PVD, Hairline Satin, or Mirror Chrome.
Commercial Shop Branding
Turnkey retail store fascias, reception wall logos, entrance pylons, window vinyl graphics, and architectural wayfinding.
Architectural Signage Craftsmanship & Facade Engineering
Visual preview of our proposed precision acrylic laser craft, weather-sealed LED modules, and architectural aluminum composite cladding.

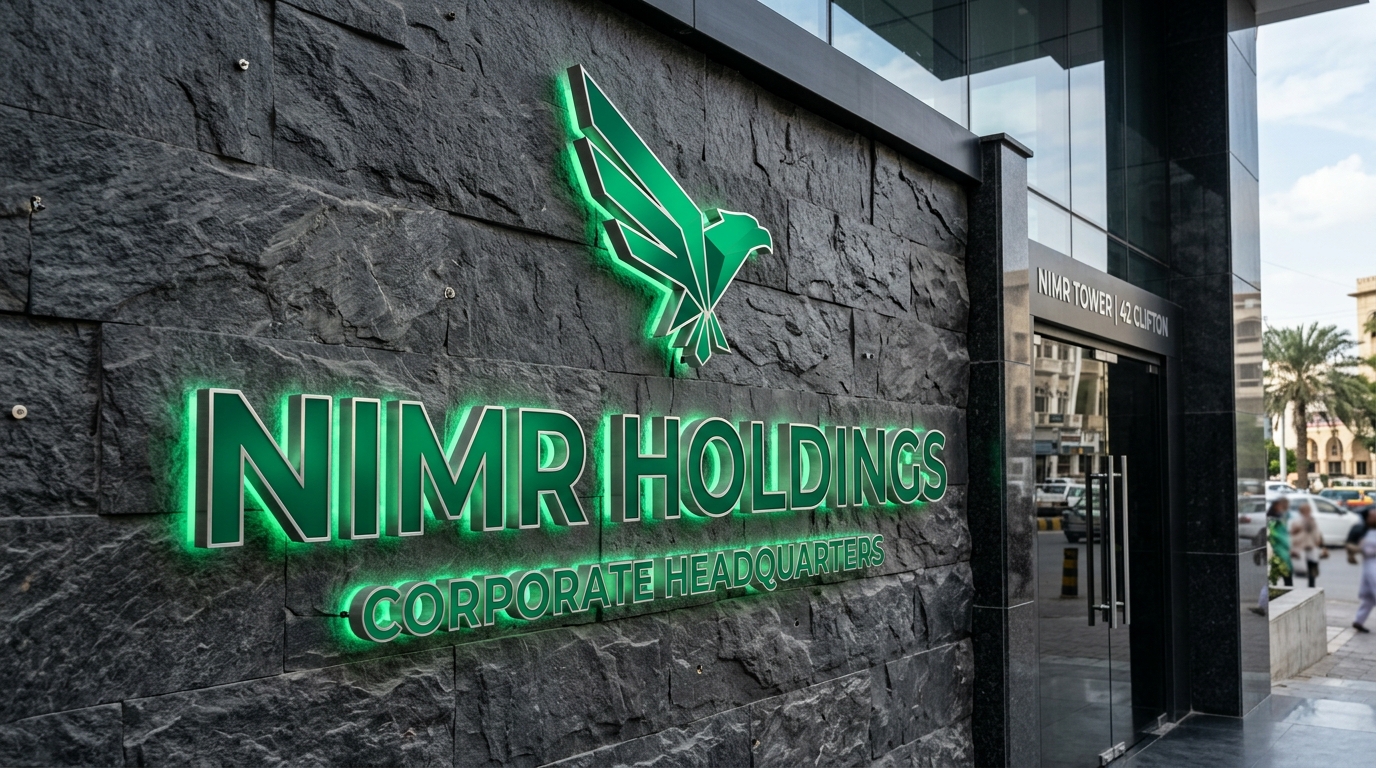

Cast PMMA Laser Craft
UV-stabilized virgin cast acrylic with 92% optical light transmission and anti-yellowing warranty.

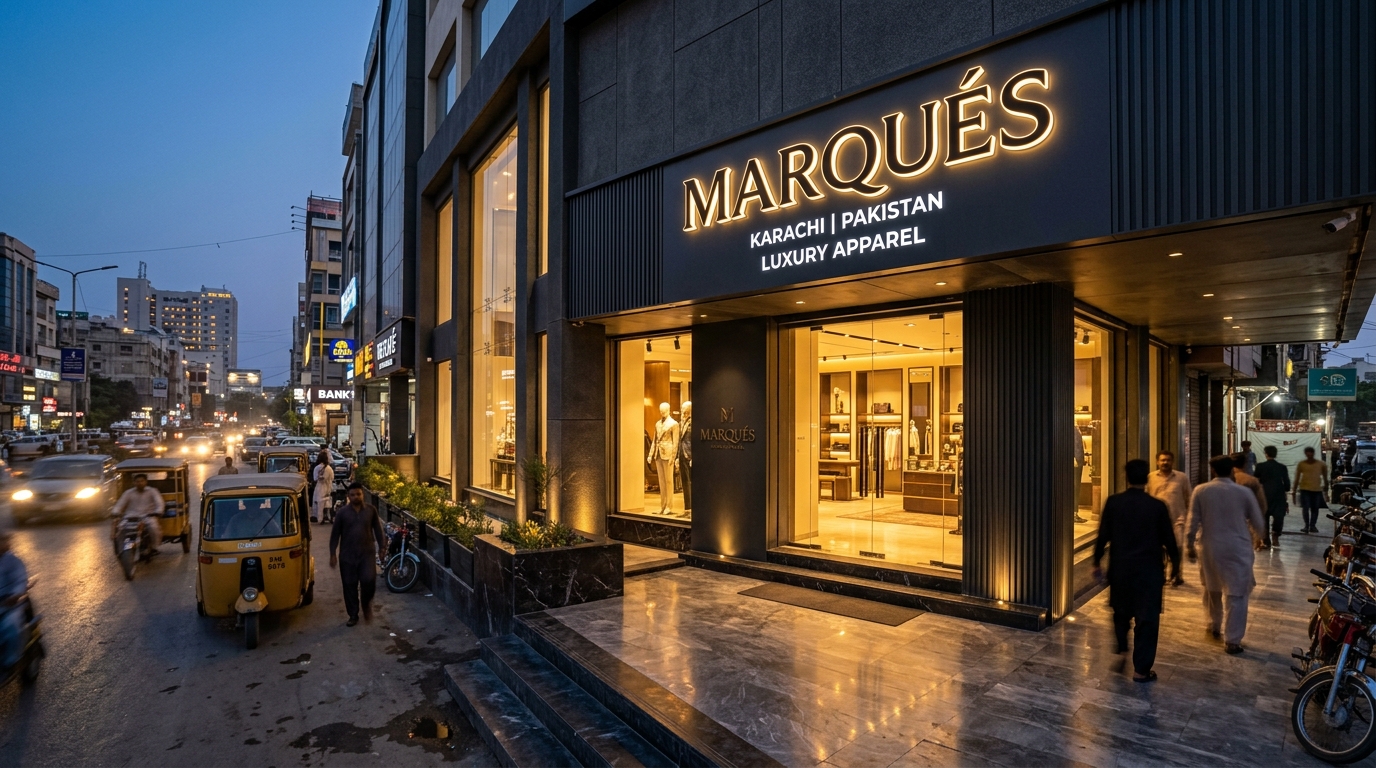

Commercial LED Storefronts
IP67 waterproof Samsung injection diodes with Mean Well 4kV surge suppressors.

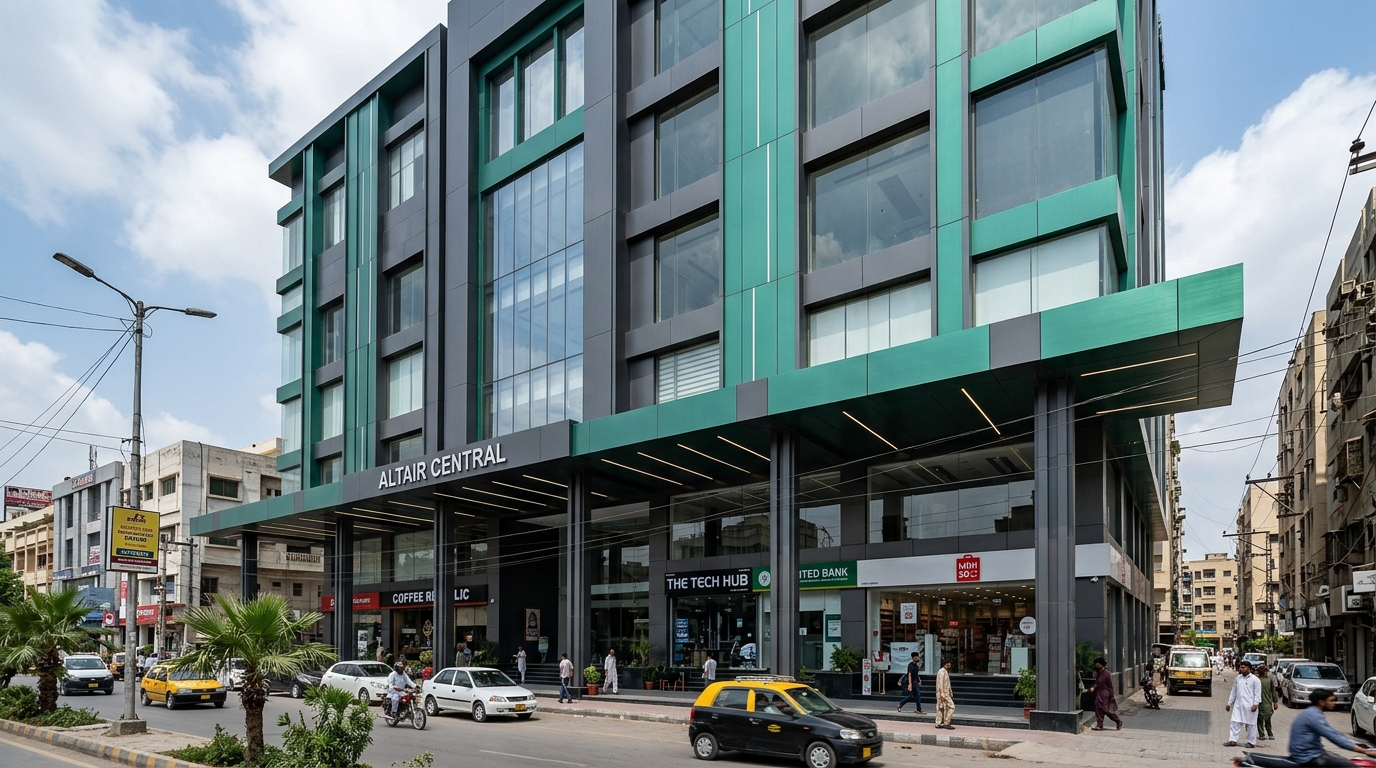

PVDF Aluminum Composite Panels
4mm heavy-duty ACP with 70/30 Kynar 500 coating engineered for Karachi coastal humidity.
Architectural Material Specifications & Coastal Durability Ratings
Substandard materials fail rapidly under Karachi's saline air and Sindh's 45°C+ summer heat. Review our certified material benchmarks.
| Material Classification | Thickness / Gauge | Durability & UV Rating | Corrosion Behavior | Primary Application |
|---|---|---|---|---|
| Cast PMMA Acrylic (Virgin) | 3mm – 20mm Sheet | 5+ Years UV Stability | Immune to moisture & salts | 3D Front-Lit, Edge-Lit & Halo Letters |
| Marine SS 316 Stainless Steel | 1.0mm – 1.5mm Face / 0.8mm Return | 10+ Years Pitting Resistance | Molybdenum alloyed against coastal chlorides | Coastal Karachi Towers, Exterior Fascias & Monoliths |
| Commercial SS 304 Stainless Steel | 1.0mm – 1.2mm Face | 8+ Years Interior / Semi-Exterior | Resistant to inland humidity & rain | Interior Lobbies, Malls & Executive Boardrooms |
| PVDF Aluminum Composite (ACP) | 4mm Total (0.5mm Aluminum Skin) | 8+ Years Weatherproof | Fluoropolymer resin coating resists acid rain | Commercial Facade Cladding & Corporate Plazas |
| Injection LED Modules (IP67) | Wide-Angle 160° Convex Lens | 50,000 Operating Hours | Ultrasonic ABS casing with silicone potting | Uniform Night-Time Illumination & Low Wattage |
| Mean Well Constant Voltage PSU | LRS / HLG Series Industrial | 5-Year Commercial Duty Cycle | Surge protection up to 4kV & thermal trip | Power Distribution for Outdoor Sign Arrays |
Climatic Engineering for Coastal Karachi & Sindh
Operating within 20 km of the Arabian Sea creates severe atmospheric aggression. Our engineering methodology integrates 4 mandatory physical safeguards:
- Monsoon Weep Drainage Vents: Sealed letter returns trap condensed humidity, leading to short circuits. We machine 3mm weep holes backed with mesh at the lowest elevation of each letter.
- Bimetallic Isolation Washers: When stainless steel touches carbon steel iron frames, galvanic corrosion accelerates. We install high-density neoprene isolation washers at all fastening points.
- Thermal Expansion Gaps: Acrylic and ACP expand up to 4mm per meter under 45°C summer heat. Fasteners are mounted with slotted oval drillings to prevent panel buckling and warping.
- Epoxy-Coated Iron Sub-Chassis: All internal supporting steel structures are sandblasted and double-coated with anti-rust zinc phosphate epoxy primer before mounting.
Municipal Regulations & Building By-Laws Compliance
Installing exterior commercial signage in Karachi and Hyderabad requires compliance with municipal building codes to prevent penalties and demolition:
- SBCA (Sindh Building Control Authority): Maximum fascia projection limit of 12 inches from exterior wall line. Rooftop installations require structural civil engineer stability certificates.
- Cantonment Boards (CBC, CBA, Malir Cantt): Mandatory annual advertisement fee clearance, standardized fascia height boundaries, and strict restrictions on animated flashing frequencies.
- DHA Karachi Guidelines: Uniform signage band heights per commercial lane, neutral backing requirements, and mandated warm-white or neutral-white color temperatures for illuminated logos.
- Pedestrian Safety Clearances: All projecting cantilever signs and wayfinding blades must maintain a minimum vertical clearance of 8.5 feet (2.6 meters) above public sidewalks.
Industry-Specific Signage Engineering
Different commercial verticals demand specialized aesthetic treatments, illumination levels, and security standards.
Banking & Financial Institutions
High-security illuminated branch fascias, ATM portal cladding, titanium gold executive lobby emblems, and directional wayfinding built to strict corporate identity manuals.
Luxury Retail & Fashion Flagships
Delicate front-lit and halo back-lit 3D acrylic channel letters, mirror-finish stainless steel fascias, and frameless crystal glass showcase branding.
Commercial Corporate Towers
Massive rooftop corporate sky signs engineered for high-altitude coastal wind loads, lobby reception feature walls, and multi-tenant elevator directory pylons.
Healthcare, Hospitals & Diagnostics
24/7 high-luminance emergency entrance wayfinding, hygienic anti-microbial interior signage, and clear campus directional pylons readable in poor weather.
QSR, Restaurants & Hospitality
Vibrant high-contrast outdoor storefront fascias, drive-thru directional signage, illuminated exterior menu boards, and ambient patio logo walls.
Automotive Showrooms & 3S Dealerships
Monumental monolithic entry pylons, large-span facade composite cladding, and illuminated automotive brand badges conforming to international brand guidelines.
Turnkey 6-Stage Engineering & Installation Process
From laser distance measurement to night-time optical tuning, every signage commission follows a rigorous engineering pipeline designed to eliminate structural detachment and electrical failures.
Site Survey & Laser 3D Scanning
Physical structural inspection of building substrate, facade load-bearing capacity, windward exposure angle, electrical conduit pathways, and viewing distance measurements.
CAD Drafting & 3D Lighting Simulation
Architectural vector layout, return depth calculations, structural anchoring engineering, and photorealistic daylight and nighttime illumination renders.
CNC Laser & Waterjet Cutting
Sub-millimeter CNC fiber laser cutting of acrylic and stainless steel faces with automated roll forming of returns to achieve flawless edge kerfs and seamless joints.
Micro-TIG Welding & Surface Finishing
Precision argon arc or hand-laser welding of metal returns, followed by multi-stage graining, mirror hand polishing, or vacuum PVD titanium gold coating.
IP67 Electrical Rigging & 48h QA Burn-In
Wiring of low-voltage injection LED arrays, Mean Well transformer load balancing (derated to 80% for longevity), silicone moisture potting, and continuous 48-hour burn-in stress testing.
On-Site Structural Mounting & Commissioning
Heavy-duty anti-rust sub-chassis mounting with expansion bolts, weatherproofing flashing, electrical circuit breaker integration, and evening illumination sign-off.
From Highway Toll Plaza Exposure to In-Store Footfall
When motorists travel along the M-9 Motorway, your 310-foot gantry billboard establishes immense subconscious authority. When they arrive at their commercial destination in Karachi or Bahria Town, an architectural 3D illuminated storefront immediately closes the recognition loop, converting highway mental availability into physical walk-in sales.
Frequently Asked Questions — Architectural Signboards & Fabrication
Why is material selection critical for outdoor signboards in Karachi?
Karachi's coastal environment presents severe atmospheric challenges, including high humidity (often exceeding 80%), airborne maritime salinity from the Arabian Sea, and intense summer UV radiation. Substandard mild steel framing rusts rapidly, cheap extruded acrylic yellows within months, and low-grade LEDs fail under thermal stress. We specify 100% virgin cast PMMA acrylic, marine-grade SS 316 stainless steel, and PVDF-coated aluminum composite panels with bimetallic isolation washers to guarantee multi-year outdoor longevity without structural corrosion or color degradation.
What LED modules and power supplies are specified for commercial exterior signage?
We specify IP67-rated waterproof injection LED modules featuring genuine Samsung 2835 or Osram Duris chips with wide-angle 160° convex optical diffuser lenses. These are paired exclusively with CE/UL certified Mean Well constant-voltage power supplies (LRS or HLG series) equipped with built-in surge suppression (up to 4kV), active power factor correction (PFC > 0.95), and short-circuit thermal auto-recovery. This eliminates flickering, ensures uniform luminescence across all letter strokes, and prevents premature burnout from Pakistani electrical grid voltage surges.
Are these fabrication services established or proposed capabilities?
While premium outdoor advertising along the Karachi–Hyderabad M-9 motorway corridor represents Green Marketing Pakistan's established core inventory, Signboards & Fabrication is transparently positioned as an active proposed expansion division. Projects are executed through specialized architectural design, structural engineering consultations, and precision fabrication workflows tailored to each commercial client's exact spatial requirements.
Do you handle complete turnkey shop branding including structural facade mounting?
Yes. Our fabrication scope covers complete turnkey delivery: physical on-site laser surveys, structural wind-load CAD drawings, CNC fiber laser cutting, electrical load calculations, anti-rust epoxy-coated sub-chassis framing, masonry anchor installation, and final evening illumination testing across Karachi, Hyderabad, and wider Sindh.
What municipal permissions and building by-laws apply to exterior signage in Karachi?
Commercial signage in Karachi is governed by multiple municipal jurisdictions depending on location: the Sindh Building Control Authority (SBCA), Karachi Metropolitan Corporation (KMC), and relevant Cantonment Boards (CBA, CBC, Faisal Cantt, Malir Cantt) as well as DHA Karachi regulations. Guidelines stipulate maximum fascia projection depth (typically 9 to 12 inches), clearance heights above pedestrian walkways (minimum 8 feet), structural stability certifications for rooftop signs, and mandatory annual advertisement tax registrations.
What is the difference between SS 304 and SS 316 for corporate signage?
SS 304 is standard commercial-grade stainless steel (18% chromium, 8% nickel) suitable for indoor lobbies, corporate reception areas, and interior shopping mall storefronts. SS 316 contains 2%–3% molybdenum, which provides superior resistance to pitting and crevice corrosion caused by maritime airborne chlorides. For any exterior facade in coastal Karachi—particularly within 15 km of the coastline (Clifton, DHA, I.I. Chundrigar Road, West Wharf)—SS 316 is mandatory to prevent unsightly brown tea-staining and metal pitting.
How do you prevent hot-spotting and shadow lines in 3D illuminated letters?
Uniform illumination is achieved by calculating the precise ratio between letter stroke width, return depth, and diode pitch. We use returns of at least 60mm to 80mm depth paired with 160° wide-angle optical diffuser lenses that overlap light cones before they strike the cast PMMA face. Inside narrow serif letter strokes, micro-injection diodes with 0.72W consumption ensure even light distribution without dark corners or bright center spots.
What warranty and expected operational lifespan do your signs carry?
Our architectural signs are engineered for commercial longevity: virgin cast PMMA acrylic carries a 5-year anti-yellowing guarantee; SS 316 stainless steel letters have an expected lifespan exceeding 10 years; IP67 LED modules are rated for 50,000 continuous operating hours; and Mean Well power supplies carry 3- to 5-year manufacturer replacement warranties.
