Sign Boards, Printing & Commercial Fabrication in Pakistan
3D Letters, LED Shop Signs, ACP Fascia, Panaflex Printing & Branded Architectural Installations. Built for engineering durability and maximum visual clarity.
Division Parameters
- Outdoor M-9 Support: Verified Panaflex printing & installation coordination.
- Fabrication Formats: 3D Acrylic, SS 304, Halo-lit LED, ACP Façade.
- Quality Standard: Tolerance drawings, IP67 electricals, site surveys.
A signboard must do more than carry a logo. It must be legible from the expected approach, fit its building, resist its operating environment and remain safe to maintain. Green Marketing Pakistan's proposed signage and fabrication service connects design, material selection, production coordination and installation planning for shops, offices, showrooms, retail networks and promotional campaigns.
For highway advertising, GMP's established profile already includes Panaflex production support and installation coordination on selected M-9 sites. Other signage and fabrication formats are subject to confirmation of the relevant project team or production partner.
How Should a Business Choose a Signboard?
A sign mounted high on an exterior wall must be designed differently from an eye-level reception plaque. Pedestrian traffic can read fine detail, while high-speed vehicular traffic demands large character heights, uncluttered contrast, and zero visual ambiguity.
Site Survey and Approved Drawings
Before ordering fabrication, conduct a site survey to record accurate dimensions, substrate composition, electrical cable routing, structural anchoring points, and obstruction shadows from trees or utility poles. Sign fabrication should always proceed from an engineering drawing signed off by both client and installer.

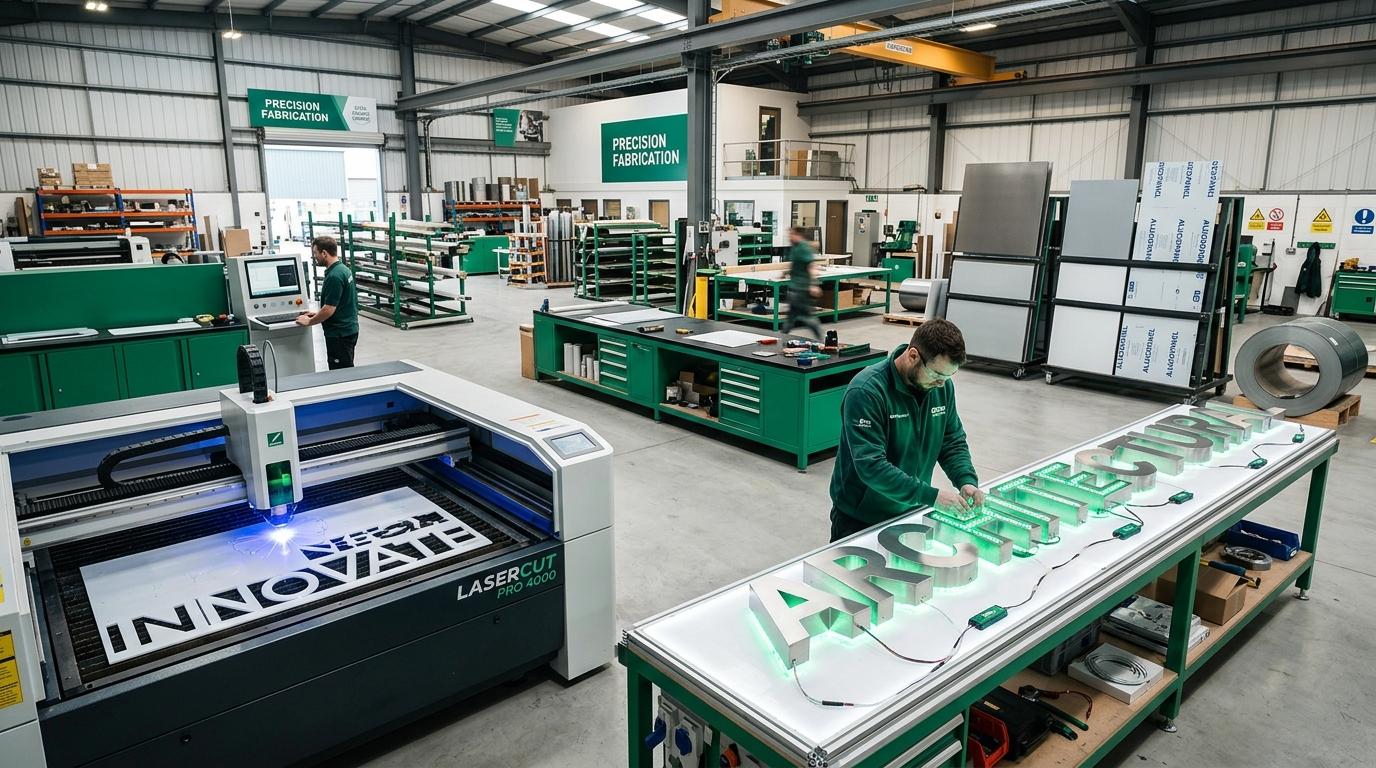

3D Acrylic, Metal & Illuminated Channel Letters
Front-Lit and Halo-Lit Letters
Front-lit letters emit light through translucent faces and commonly support high-contrast retail signage. Halo-lit letters project light behind the characters onto a suitable backer. The rear clearance, surface finish and stand-off dimensions affect the halo's consistency; they should not be guessed at installation.
Cast vs Extruded Acrylic
Both are PMMA. Cast acrylic is often preferred for custom machining and fabrication needs; extruded sheet often has tighter thickness tolerance. As a manufacturer-specific illustration, Röhm's PLEXIGLAS glossary describes a nominal 4 mm cast GS sheet with ±0.8 mm thickness tolerance and an extruded XT sheet with ±0.2 mm tolerance. Those are product-specific examples, not universal tolerances for every acrylic supplier.
Thin sheet is not automatically adequate for a large face. Letter size, fixing span and exposure require an approved engineering design.

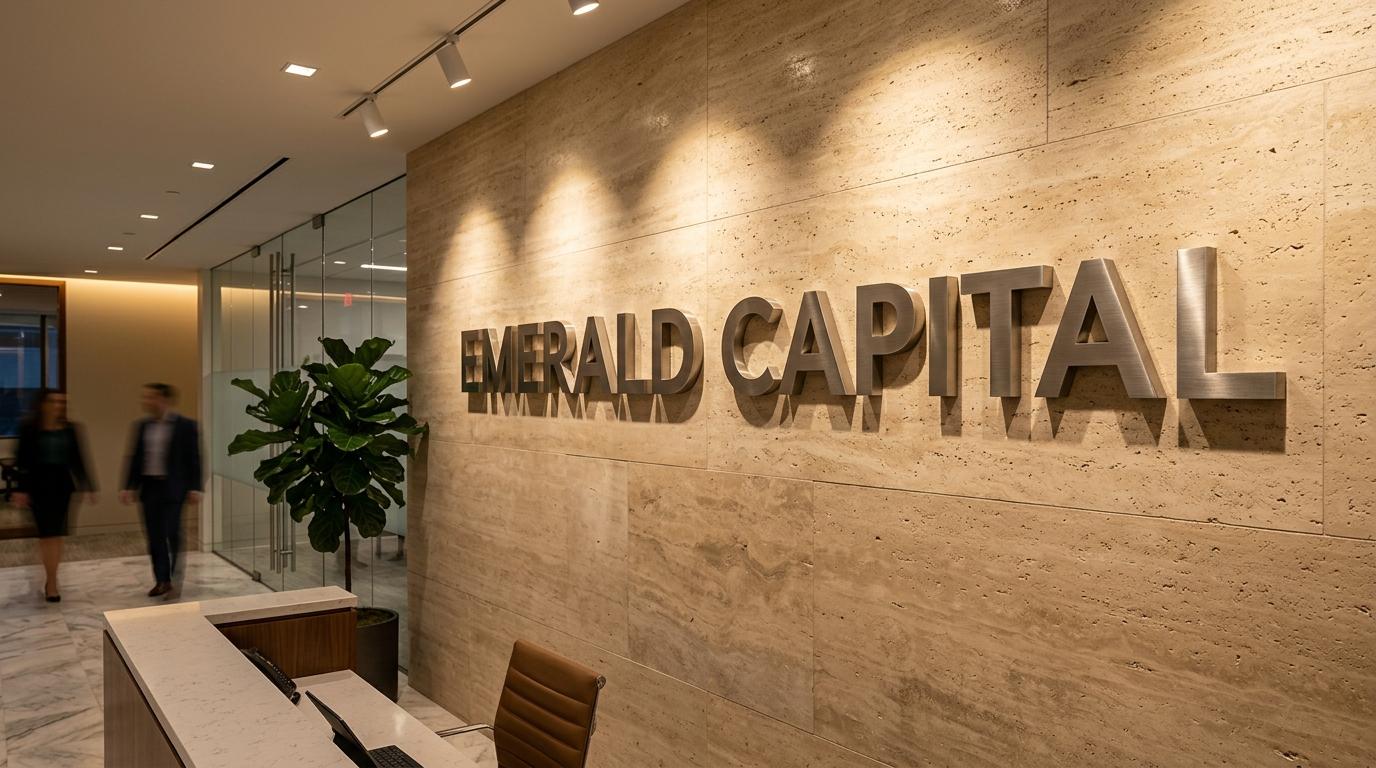

Stainless Steel 201, 304 and Coastal Conditions
Grade 304 usually offers better corrosion resistance than 201, while more demanding marine exposure (such as coastal Karachi or industrial hubs) may justify checking Grade 316 with the fabricator. Ask for certified grade, nominal thickness, finish, weld passivation treatment, separation from incompatible metals and cleaning instructions. Terms such as “premium steel” are not specifications.
LED Modules, Drivers & Waterproofing
A suitable bill of materials should record operating voltage, maximum designed load, circuit protection, driver model, environmental rating and service access. MEAN WELL's HLG range includes IP67 configurations, but some variants have different ingress ratings. Check the exact datasheet and manufacturer derating requirements.
If selected LED modules total 144 W, a designer may assess a driver with suitably greater rated output, after reviewing voltage, ambient temperature and manufacturer's derating curves. This is a planning example—not an electrical specification to follow without design verification.
For outdoor signs, document safe isolation, IP68 cable glands, weep drip paths, earthing/bonding where required and arrangements for replacing failed modules without destroying letter faces.
ACP Fascia, Panaflex, Vinyl & Large-Format Printing
| Format | Common Application | Decision Factors | Cost Tendency* |
|---|---|---|---|
| Printed Panaflex/flex | Billboard skins, temporary large graphics | Print resolution, tension, UV exposure, replacement cycle | Lower |
| Vinyl on rigid panel | Retail promotions, flat branded faces | Adhesion, UV over-laminate protection, substrate flatness | Low–medium |
| Acrylic dimensional letters | Storefronts and corporate offices | Face thickness, internal illumination, fixing methods | Medium–high |
| Stainless-steel letters | Corporate signs and architectural fascias | Grade (SS 304/316), finish, anti-corrosion, fixing security | Medium–high |
| ACP fascia | Commercial shopfront cladding | Panel core, fire rating, coating durability (PVDF), subframe | Medium–high |
| Cast vinyl fleet wrap | Curved vehicle branding and delivery fleets | Cast film class, laminate protection, installation skill | Medium–high |
*Relative positions are illustrative and not Pakistani market quotations; exact pricing depends on size, material grade, suppliers and site.
For ACP, specify the core/fire performance required by the project. An exterior coating specification such as PVDF does not establish the panel's fire rating. For printed faces, verify colour proofs, seam positions, eyelet or clamping system, and whether replacement media is included.
Vehicle Wraps and Fleet Graphics
Vehicle panels need careful surface cleaning and film selection. Existing paint condition, complex recesses, window restrictions, legally required markings and future removability should be reviewed. Manufacturer care instructions, such as 3M's, make clear that trained installation and cleaning practices influence wrap durability.
CNC Routing, Fabrication Quality & Installation Safety
Agree practical tolerances in the drawing rather than advertising one universal tolerance for all materials. Inspect lettering alignment, visible surface finish, wiring separation, approved fixings and completed sealant details. Record defects before signing off.
Pakistan's permission requirements vary by location and authority. A project under one municipal or development body does not establish the rules for all of Karachi or other cities. Confirm landlord consent and applicable local NOCs before fabrication.
How Much Do Signboards Cost in Pakistan?
Procurement and Acceptance Checklist
| Stage | Document or Evidence to Request |
|---|---|
| Survey | Photographs, measured frontage dimensions and structural site restrictions |
| Design | Signed artwork proofs and dimensioned architectural elevations |
| Material approval | Certified material grade, thickness tolerances, physical samples and surface finish |
| Electrical | LED module/driver schedule, circuit protection, and safety drip/grounding provisions |
| Structural | Wind-load fixing details and engineered subframe design where required |
| Production | Pre-press proof, 3D mockup or acrylic letter sample with quality control signoff |
| Completion | Day/night high-res photos, snagging defects list, and manufacturer warranty scope |
Frequently Asked Questions
Is ACP better than acrylic for a shop sign?
ACP is commonly used as a fascia backing, while acrylic is often used for faces and letters. They perform different roles and can be combined in one correctly designed installation.
How long does an LED shop sign last?
Service life depends on the selected components, heat, water protection, maintenance and operating conditions. Ask for component-specific warranties rather than a blanket lifetime claim.
Can a Panaflex billboard be changed later?
Usually, subject to the mounting system and site terms. Confirm replacement printing, removal, installation and access costs separately.
Are building sign permits required in Pakistan?
Requirements depend on the precise location, authority, structure and sign format. Check landlord approval and relevant municipal or development-authority rules before installation.
Do you provide vehicle and showroom branding?
The proposed service scope includes those formats, subject to verified project delivery arrangements and an agreed quotation.
