Commercial LED Signboards in Pakistan
High-efficiency, brilliant outdoor and indoor LED signboards engineered with IP67 waterproof injection modules, wide-angle 160° convex optical lenses, and surge-protected industrial Mean Well power supplies.
IP67 Waterproof Samsung Injection LEDs with Mean Well 4kV Surge Protection
Proposed Illumination Capability
Our Commercial LED Signboard capabilities are active proposed expansion services. We engineer custom illuminated sign arrays using commercial-grade optoelectronics and surge-protected power infrastructure.
Engineered for Uniform Brilliance & Grid Resilience
Every component is selected to withstand high ambient temperatures, humidity, and volatile voltage fluctuations without lumen degradation.
Wide-Angle Convex Optical Lenses (160°)
Convex PMMA optical lenses disperse light widely across the face, eliminating bright hot-spots and enabling slim sign depths without shadow bands.
IP67 Ingress Protection & Silicone Potting
Ultrasonic injection-molded ABS casings with solid silicone rubber potting completely seal electronics against Karachi sea-salt humidity and monsoons.
Thermal Aluminum Heat-Sink Backing
Diodes are mounted on aluminum circuit boards and thermal metal tracks, transferring heat away from semiconductor junctions to maintain 90%+ lumen output.
Mean Well Surge-Protected Power Supplies
Industrial constant-voltage Class 2 power supplies equipped with active PFC > 0.95, EMI filtering, and 4kV surge suppression against grid volatility.
Energy Consumption Comparison: LEDs vs. Traditional Lighting
Estimated electrical power consumption and operating expenditures based on a 15-foot storefront sign operating 12 hours per night.
| Illumination System | Average Power Draw | Thermal Heat Load | Operational Lifespan | Relative Operating Efficiency |
|---|---|---|---|---|
| Traditional Fluorescent Tubes (T8) | 850W – 1,200W | High (Degrades sign plastic) | 6,000 – 8,000 Hours | High Consumption (100% Base) |
| Traditional High-Voltage Neon | 600W – 900W | Moderate (Fragile glass tubes) | 12,000 – 15,000 Hours | Moderate Consumption (~75% Base) |
| Our Samsung IP67 LED Injection Modules | 150W – 220W | Negligible (Cooled on AL rail) | 50,000+ Hours | Ultra-Low Consumption (~20% Base / 80% Savings) |
Technical Specifications & Electrical Ratings
Industrial hardware parameters specified for reliable 24/7 commercial performance.
| Technical Parameter | Engineering Specification |
|---|---|
| LED Diode Brand | Samsung 2835 / Osram Duris E 2835 High-Lumen |
| Luminous Efficacy | 130 – 160 Lumens / Watt |
| Color Rendering Index (CRI) | Ra > 82 (Rich, accurate brand color reproduction) |
| Beam Angle | 160° Convex Optical Refraction Diffuser |
| Waterproof Enclosure Rating | IP67 (Dust tight & submersible up to 1 meter) |
| Power Supply Unit | Mean Well LRS / HLG Industrial Class (Constant 12V/24V DC) |
| Grid Input Voltage | Universal AC 90V – 264V, 50/60 Hz |
| Surge Immunity | Up to 4kV Line-to-Earth Surge Withstand |
| Expected Operational Lifespan | 50,000+ Hours (Over 5.7 Years at 24/7 duty cycle) |
High-Impact Deployment Environments
Where energy-efficient LED signage delivers the strongest return on investment and brand visibility.

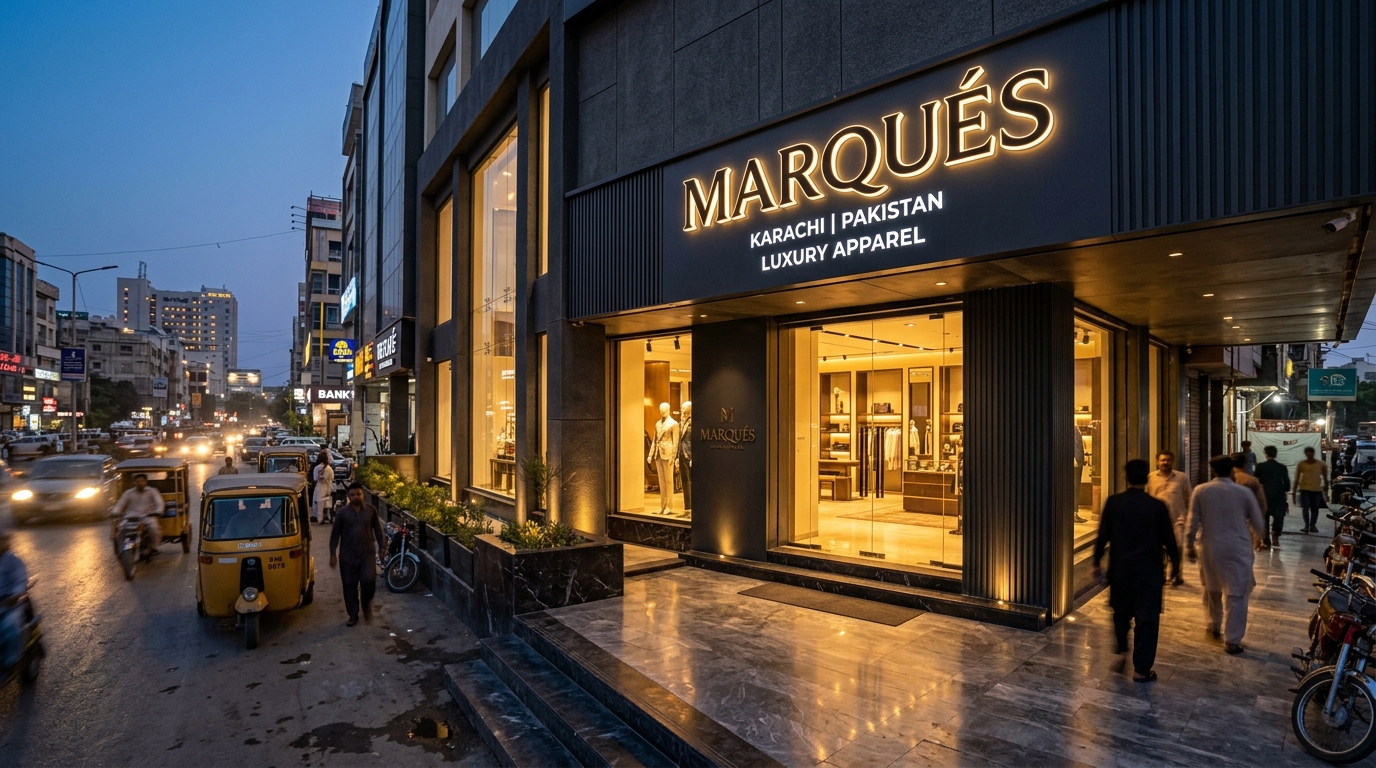

24/7 Commercial Storefront Fascias
Brilliant street visibility for pharmacies, flagship supermarkets, and retail chains along major metropolitan boulevards.
Corporate Headquarters Towers
Rooftop and high-altitude exterior sky signs engineered for maximum night visibility across urban skylines.
QSR & Fast-Food Drive-Thru Signage
High-contrast illuminated menu boards and directional blades readable through car windscreens in heavy rain.
Banking ATM & Branch Portals
Uniformly illuminated architectural portals built to strict banking security and corporate brand identity standards.
Frequently Asked Questions — Commercial LED Signboards
Why do low-cost LED signboards develop dark patches and flicker in Pakistan?
Inexpensive signboards cut corners by using cheap non-waterproof LED ribbon strips and generic unbranded power adapters. Under Karachi's intense summer heat (ambient temperatures 40°C+), uncooled LED junctions overheat rapidly, causing phosphor degradation and diode burnout. Furthermore, Pakistani electrical grid voltage surges easily destroy unshielded transformers. We prevent this by mandating ultrasonic-sealed IP67 injection modules with aluminum thermal backing and Mean Well drivers equipped with 4kV surge protection.
What is the difference between standard 120° LEDs and 160° convex optical diffuser lenses?
Standard 120° LEDs project light in a narrow cone, requiring sign depth of at least 100mm to 120mm to avoid hot-spotting (visible circular light circles on the sign face). Our 160° convex optical lenses use wide-angle refraction to disperse light broadly at the module surface, allowing slim signs as shallow as 50mm to achieve perfectly uniform, streak-free luminescence while reducing total module count by 25%.
How much electricity does a modern commercial LED signboard consume compared to traditional neon or tube lights?
A modern commercial LED signboard consumes up to 80% less electrical energy than old fluorescent tube light boxes and 70% less than neon. A large 15-foot illuminated retail fascia drawing only 180W to 250W of power can run continuously for 12 hours every night with over 75% to 80% reduction in electricity consumption compared to legacy fluorescent systems.
Can the sign be configured to automatically turn on at dusk and off at sunrise?
Yes. We offer automated digital photoelectric twilight sensors or programmable DIN-rail digital astronomical timers mounted inside the electrical distribution box. This ensures zero manual intervention, turning illumination on exactly when twilight begins and switching off during daylight hours to conserve power.
What warranty coverage is included with your LED signboards?
Our commercial LED installations include a 3-year warranty on Samsung/Osram IP67 injection modules and a 3- to 5-year replacement warranty on Mean Well industrial power supplies, covering electrical failure, driver burnout, and severe luminous decay.
What voltage runs inside the sign letters and is it safe during monsoons?
The electrical wiring running through the sign letters and facade is strictly low-voltage 12V or 24V DC. High-voltage 220V AC is converted at the central Mean Well transformer enclosure, which is housed in an IP66 weatherproof enclosure. Even during torrential Karachi downpours, the exterior letters carry zero high-voltage shock risk.
What color rendering index (CRI) and color temperatures are available?
We specify high CRI modules (Ra > 82), ensuring your corporate brand colors appear rich, vibrant, and true to brand guidelines rather than washed out. Color temperatures available include 3000K (Warm White), 4000K (Natural White), 6500K (Daylight Cool White), and colored monochrome modules (Red, Green, Blue, Amber).
How do you service or replace power supplies if they ever fail?
We never bury power supplies inside sealed letter cavities. Transformers are centralized in a ventilated, easily accessible service panel located behind the fascia or inside the ceiling space. In the rare event of a component failure, a technician can replace the modular driver in under 15 minutes without dismantling the exterior facade.
